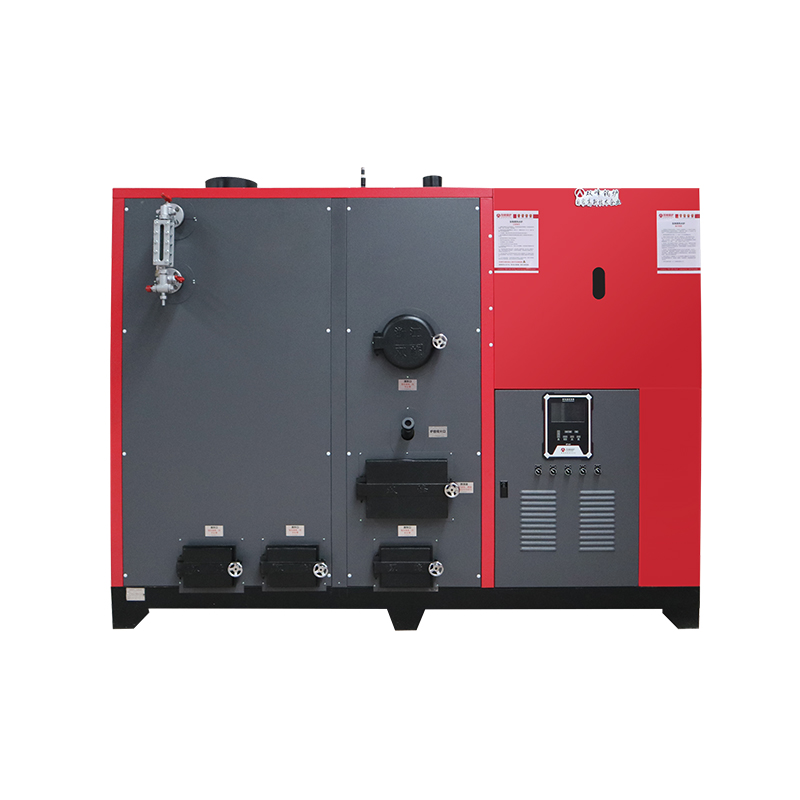

CLHG Horizontal Coal Fired Hot Water Heater

CLHG Horizontal Coal Fired Hot Water Heater

Product Introduction and Feature
The SFeng CLHG-S series hot water heater is a biomass pellet/coal/wood-fueled boiler. It features a unique smokeless combustion technology, employing multiple air supplies at different heights in the furnace. This ensures a more complete combustion, complemented by a multi-tube energy-saving system. After biomass pellet combustion in the combustion chamber, the flue gas undergoes multiple cycles before being discharged, increasing the heating surface area by 30% and achieving a thermal efficiency of up to 88%. The hot water heater also optimizes the furnace grate area, adopting a double-sided segmented air supply with an adjustable closed structure below the grate. This results in a uniform air intake, significantly improving the fuel burnout rate, achieving 99.5% combustion efficiency, and ensuring low emissions of CO², sulfur, and nitrogen oxides, meeting environmental requirements.


Key Feature

1. One-key startup for fully automatic operation, safe and convenient.
2. Unique multi-cycle combustion system with thermal efficiency exceeding 90%.
3. Remote control and real-time monitoring through an APP, saving labor.
4. Multiple gear switching based on actual heat demand, resulting in 15-20% energy savings compared to traditional boilers.


The hot water heater employs temperature-controlled energy-saving operation control technology, enabling one-click operation, real-time display of combustion data, fault alarms and protection, fault inquiries, and automatic adjustment of firepower through fully automated intelligent control. The shell is insulated with high-thermal yang fiber and a closed metal outer layer to facilitate convenient operation, maintenance, and repair during design.

Parameter

Product Parameters Of Biomass Hot Water Boilers

Boiler model (MW) (10^4kcal) External dimensions of the boiler body weight(kg) Inlet and outlet Discharge outlet Full load fuel Consumption
(kgh)
Sib capacity
(kg)
Heat sink heating inlet/outlet temperature 50/75℃ water output(t/h)
long(mm) wide(mm) high(mm)
CLHG0.06-85/60-S 0.06 5 1530 650 1550 500 DN40 DN25 13.5 100 2
CLHG0.12-85/60-S 0.12 10 1720 800 1720 800 DN40 DN25 26 120 4
CLHG0.18-85/60-S 0.18 15 2000 800 1750 900 DN40 DN25 40 120 6
CLHG0.24-85/60-S 24 20 2300 850 1800 1300 DN50 DN40 54 130 8
CLHG0.35-85/60-S 0.35 30 2510 850 1950 1500 DN50 DN40 79 160 12
CLHG0.48-85/60-S 0.48 40 2540 1000 2150 1800 DN65 DN40 106 230 16
CLHG0.60-85/60-S 0.6 50 2800 1200 2200 2000 DN65 DN40 133 270 20
CLHG0.70-85/60-S 0.7 60 2950 1300 2150 2100 DN80 DN40 158 350 24
CLHG1.05-85/60-S 1.05 90 3100 1400 2360 2600 DN100 DN50 237 480 36
CLHG1.4-85/60-S 1.4 120 4500 1650 1980 5500 DN125 DN50 316 480 48
CLHG2.1-85/60-S 2.1 180 4500 2100 2650 7000 DN150 DN50 474 600 72
