Product Introduction and Feature

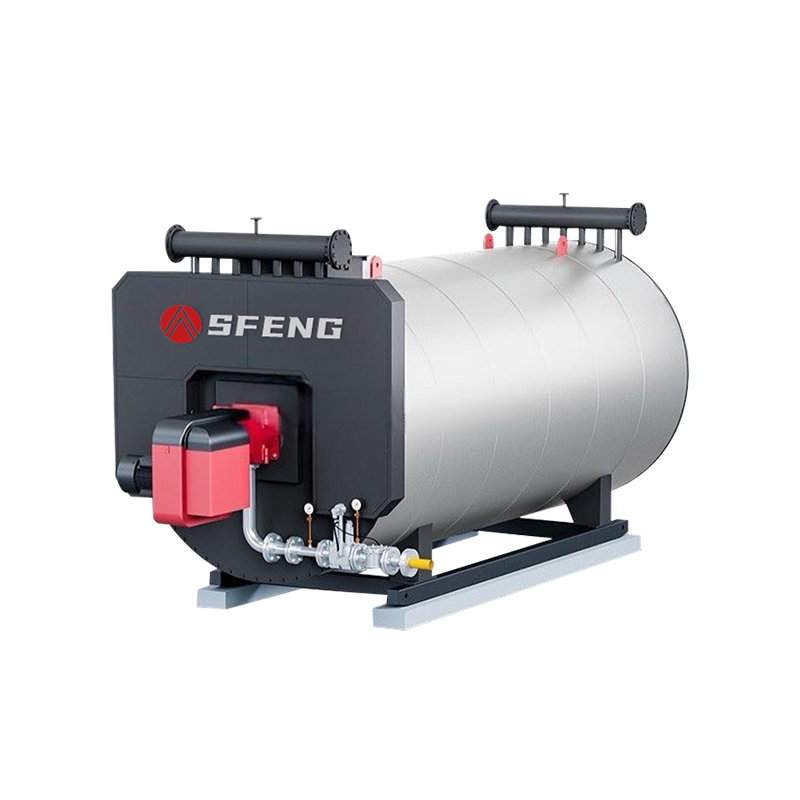

The YQ(Y)W Gas/Oil Fired Horizontal Thermal Fluid Heater adopts a three-way circular coil structure, the end of the coil adopts conical coil, which effectively protects the furnace wall at the end of the boiler, and is equipped with advanced combustion device, which has good energy-saving and environmental protection performance. The furnace type has the characteristics of wide fuel adaptability, low pressure and high temperature, safety and high efficiency, the thermal efficiency is up to more than 95%, and the perfect automatic control system can be unattended.
Structural Features and Performance
1. Innovative patented variable flow rate technology, low resistance to heat medium flow.
2. Tandem structure, small temperature difference of heat medium.
3. Process optimization, counter-current heat transfer, low exhaust temperature, and high efficiency of the main body.
Applications
Chemical, textile and dyeing, food, wood processing, paper, building materials, rubber, and pharmaceutical industries.
Available Fuels: Gas/oil,.etc
Product Details
1. Fully Assembled In Factory
Boiler QC tested and fully assembled in our factory
Easy transportation, installation, and commissioning
2. Advanced Low NOx Burner
Improve combustion efficiency
3. Larger Oil Capacity
Adequate heat transfer oil storage space and heating surface
Improvement of thermal efficiency
4. Outlet Container
Adopting two-end flange and flange cover structure
Easy installation and arrangement of piping in boiler room
5. Fully Automatic Control
Automatically regulates and protects the combustion of the boiler and the liquid level of high-level tank, Outlet temperature and flow rate
Unattended and precise control can be achieved
Model | Rated Power (KW) |
Rated thermal power (x10⁴ kcal/h) |
Design oil temperature (≤℃) |
Rated working pressure (MPa) |
Heat efficiency (≥%) |
System power supply (KW) |
MAX. Transport size (m) (L×W×H) |
YQW-1400 Y(Q) |
1400 | 120 | 320 | 0.8 | 95 | 35 | 4.3×2.0×2.6 |
YQW-1800 Y(Q) |
1800 | 160 | 320 | 0.8 | 95 | 56 | 4.9×2.2×2.6 |
YQW-2400 Y(Q) |
2400 | 200 | 320 | 0.8 | 95 | 56 | 5.3×2.5×3.0 |
YQW-2800 Y(Q) |
2800 | 240 | 320 | 0.8 | 95 | 66 | 6.1×2.5×3.0 |
YQW-3500 Y(Q) |
3500 | 300 | 320 | 0.8 | 95 | 75 | 6.7×2.6×3.0 |
YQW-4200 Y(Q) |
4200 | 360 | 320 | 0.8 | 95 | 95 | 6.9x2.7×3.2 |
YQW-4600 Y(Q) |
4600 | 400 | 320 | 0.8 | 95 | 95 | 7.0×2.9×34 |
YQW-6000 Y(Q) |
6000 | 500 | 320 | 0.8 | 95 | 140 | 7.2×3.3×3.9 |
YQW-7000 Y(Q) |
7000 | 600 | 320 | 0.8 | 95 | 140 | 8.0×3.6×4.0 |
YQW-8200 Y(Q) |
8200 | 700 | 320 | 0.8 | 95 | 140 | 8.5×3.7×4.0 |
YQW-9400 Y(Q) |
9400 | 800 | 320 | 1 | 95 | 200 | 9.5×3.8×4.0 |
YQW-10500 Y(Q) |
10500 | 900 | 320 | 1 | 95 | 200 | 10.5×3.8×4.0 |
YQW-12000 Y(Q) |
12000 | 1000 | 320 | 1 | 95 | 240 | 12.4×3.8×4.0 |
YQW-14000 Y(Q) |
14000 | 1200 | 320 | 1 | 95 | 300 | 13.5×4.0×4.2 |
