Product Introduction and Feature

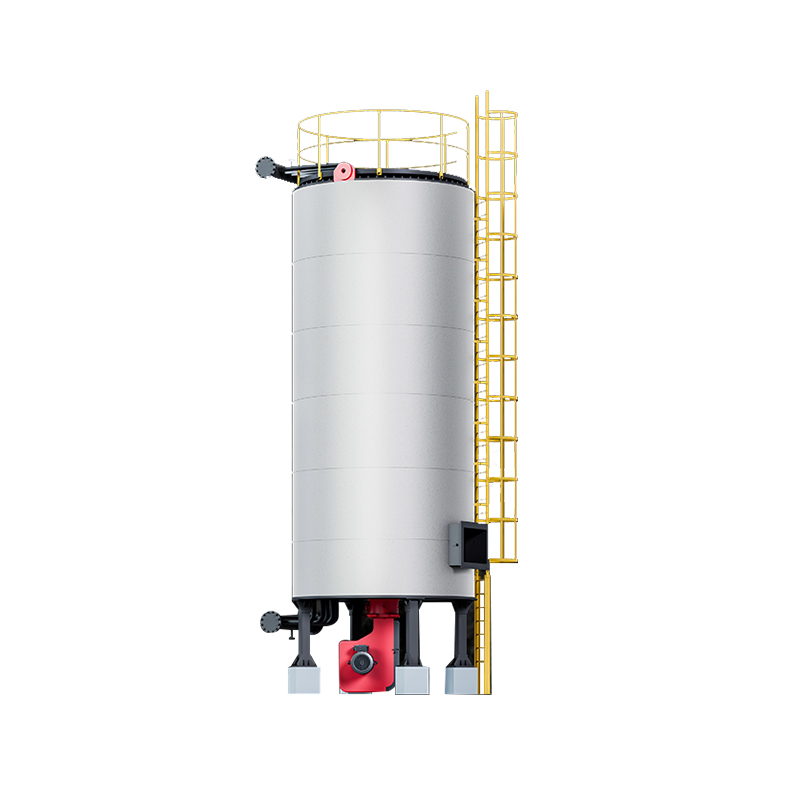

The YQ(Y)L Gas-fired/Oil-fired Vertical Thermal Fluid Heater adopts three-way circular coil structure, with the conical coil at the end of the coil, which effectively protects the furnace wall at the end of the boiler, and is equipped with advanced combustion device, which has good energy-saving and environmental protection performance. The furnace has the characteristics of wide fuel adaptability, low pressure and high temperature, safety and high efficiency, the thermal efficiency is up to more than 95%, and the perfect automatic control system that can be unattended.
Structural Features and Performance
1. Innovative patented variable flow rate technology, low resistance to heat medium flow.
2. Tandem structure, small temperature difference of heat medium.
3. Process optimization,counter-current heat transfer, low exhaust temperature, and high efficiency of the main body.
Product Details
1. Outlet Container
Adopting a two-end flange and flange cover structure
Easy installation and arrangement of piping in boiler room
2. Fully Assembled In Factory
Boiler QC tested and fully assembled in our factory
Easy transportation, installation, and commissioning
3. Convection Parts
Multi-layer tightly arranged tube bundles and multiple round steel
Prevents short-circuiting of flue gases
4. Manhole and Inspection Door
Reasonable arrangement of manholes and inspection doors
Convenient for maintenance, inspection, and cleaning
5. Radiant Part
Adopts three-way coil structure
The inner coil absorbs more heat and has a higher flow rate. Safe and reliable operation at high temperature
6. Fully Automatic Control
Automatically regulates and protects the combustion of the boiler and the liquid level of the high-level tank, Outlet temperature and flow rate
Unattended and precise control can be achieved
Applications
Chemical, textile and dyeing, food, wood processing, paper, building materials, rubber, and pharmaceutical industries.
Available Fuels: Gas/oil,.etc
Boiler type | Rated heat supply (KW) |
Rated heat suppy (x10⁴ kcal/h) |
Design service temperature (≤℃) |
Rated working pressure (MPa) |
Thermal efficiency (≥%) |
Design as requested (KW) |
Maximum transport size (m) (L×W×H) |
YQL-7000Q | 7000 | 600 | 320 | 0.8 | 95 | 140 | 8.0×3.6×4.0 |
YQL-8200Q | 8200 | 700 | 320 | 0.8 | 95 | 140 | 8.5×3.7×4.0 |
YQL-9400Q | 9400 | 800 | 320 | 1 | 95 | 200 | 9.5×3.8×4.0 |
YQL-10500Q | 10500 | 900 | 320 | 1 | 95 | 200 | 10.5×3.8×4.0 |
YQL-12000Q | 12000 | 1000 | 320 | 1 | 95 | 240 | 12.4×3.8×4.0 |
YQL-14000Q | 14000 | 1200 | 320 | 1 | 95 | 320 | 13.5,×4.0×4.2 |
YQL-16500Q | 16500 | 1400 | 320 | 1 | 95 | 380 | Design on demand |
YQL-18000Q | 18000 | 1600 | 320 | 1 | 95 | 450 | Design on demand |
YQL-21000Q | 21000 | 1800 | 320 | 1 | 95 | 520 | Design on demand |
YQL-23300Q | 23300 | 2000 | 320 | 1 | 95 | 600 | Design on demand |
YQL-26000Q | 26000 | 2200 | 320 | 1 | 95 | 700 | Design on demand |
YQL-29200Q | 29200 | 2500 | 320 | 1 | 95 | 825 | Design on demand |
